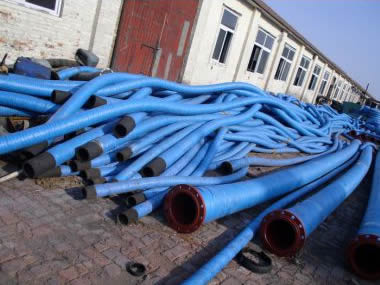

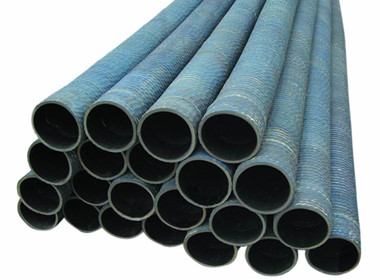

Water Suction Hose
Application:

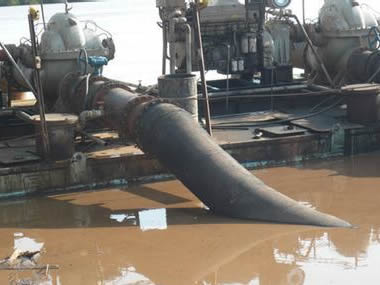

Water suction hose is applied for light re medium water suction and discharge operations, including delivery of water and other neutral liquids at normal temperature in industry mining, agriculture, construction work, parks and home daily life.
Construction:
Tube: Synthetic rubber.
Cover: Black synthetic rubber, wrapped; spiral embossed layline.
Reinforcement: Spiral-piled fabrics and wire helix.
Temperature: -32 °C to +82°C (-25 ℉ to +180 ℉)
S
| Water Suction Hose Technical Specification | |||||||||
| ID | OD | Max W.P | Max W.P | Min B.R | Vacuum HG | Weight | |||
| inch | mm | mm | psi | Mpa | inch | mm | inch | mm | kg/m |
| 3/4 | 19 | 27 | 150 | 0.86 | 2 | 51 | 29 | 737 | 0.49 |
| 1 | 25 | 34 | 150 | 0.86 | 2 | 51 | 29 | 737 | 0.61 |
| 1 1 /4 | 32 | 41 | 150 | 0.86 | 4 | 102 | 29 | 737 | 0.75 |
| 1 1/2 | 38 | 47 | 150 | 0.86 | 4 | 102 | 29 | 737 | 0.94 |
| 2 | 51 | 30 | 150 | 0.86 | 7 | 178 | 29 | 737 | 1.25 |
| 2 1/2 | 64 | 73 | 150 | 0.86 | 10 | 255 | 29 | 737 | 1.61 |
| 3 | 76 | 87 | 150 | 0.86 | 14 | 356 | 29 | 737 | 2.18 |
| 3 1/2 | 90 | 100 | 150 | 0.86 | 14 | 356 | 29 | 737 | 2.68 |
| 4 | 101 | 113 | 150 | 0.86 | 18 | 457 | 29 | 737 | 3.02 |
| 5 | 127 | 141 | 150 | 0.86 | 20 | 510 | 29 | 737 | 4.98 |
| 6 | 152 | 168 | 150 | 0.86 | 24 | 612 | 29 | 737 | 6.96 |
| 8 | 203 | 222 | 150 | 0.86 | 48 | 1200 | 29 | 737 | 11.26 |
| 10 | 253 | 254 | 150 | 0.86 | 60 | 1500 | 29 | 737 | 18.39 |
| 12 | 305 | 332 | 150 | 0.86 | 72 | 1800 | 29 | 737 | 28.41 |
