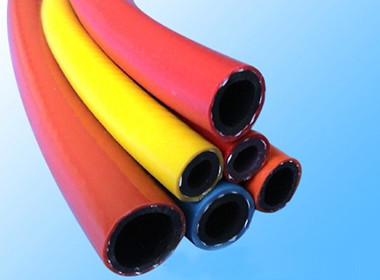

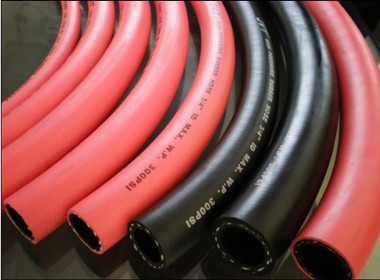

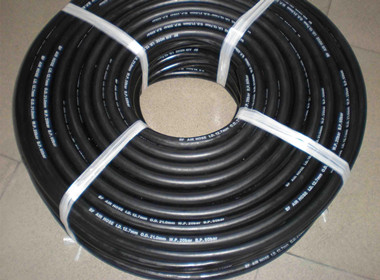

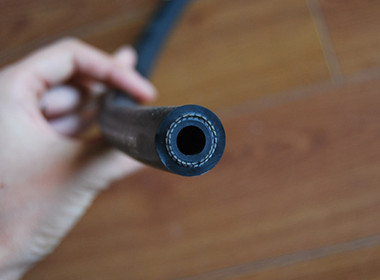

Air Hose
Air Hose
Air hose is used to transfer air to air tools or compressor equipment. It can be used in many places, for example amusement of scuba diving and transportation of auto braking. Because of its importance to people’s life, most air hoses are manufactured to be durable and tested strictly. Air hoses are often used for air compressors. The air compressors are connected to other device via a hose. In fueling stations, air can be obtained by the air compressors to cars. In addition, air hoses can be used for various types of air tools that require operating by compressed air, such as air sprayers.
Construction:
Tube: Black, smooth, electrically conductive, NBR rubber compound, oil
resistant.
Reinforcement: High strengthen synthetic cord.
Cover: Black smooth (wrapped) electrically conductive, CR rubber
compound, fire, oil and weather resistant.
Temperature: -15 °C to +70 °C(-5 ℉ to +158℉)
Specification:
| Air Hose Technical Specification | |||||||||
| I.D | O.D. | Working Pressure | Burst Pressure | Weight | |||||
| mm | inch | mm | inch | MPa | Psi | MPa | Psi | kg/m | lbs/ft |
| 13 | 1/2 | 23 | 29/32 | 1.75 | 260 | 7 | 1050 | 0.35 | 0.24 |
| 16 | 5/8 | 28 | 1 3/25 | 1.75 | 260 | 7 | 1050 | 0.42 | 0.53 |
| 19 | 3/4 | 32 | 1 1/4 | 1.75 | 260 | 7 | 1050 | 0.58 | 0.71 |
| 25 | 1 | 36 | 1 27/64 | 1.75 | 260 | 7 | 1050 | 0.66 | 0.44 |
| 38 | 1 1/2 | 52.5 | 2 3/64 | 1.75 | 260 | 7 | 1050 | 1.21 | 0.82 |
| 51 | 2 | 66 | 2 19/32 | 1.75 | 260 | 7 | 1050 | 1.62 | 1.09 |
