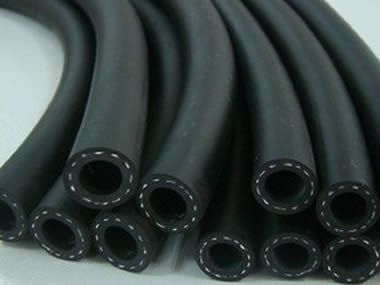

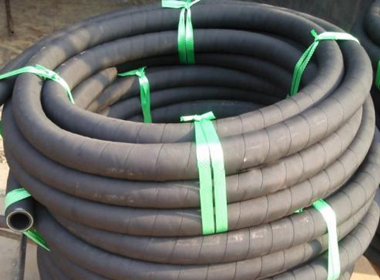

Acid and Alkali Resistant Hose
| Acid or Alkali Rubber Hose Technical Specification | |||||||||
| ID | OD | Max W.P | Min B.P | Layer | Length | Weight | |||
| inch | mm | mm | psi | Mpa | psi | Mpa | inch | m | kg/m |
| 1/2 | 13 | 22 | 145 | 1 | 435 | 3 | 2 | 20 | 0.46 |
| 5/8 | 16 | 24 | 145 | 1 | 435 | 3 | 2 | 20 | 0.51 |
| 3/4 | 19 | 29 | 145 | 1 | 435 | 3 | 2 | 20 | 0.73 |
| 7/8 | 22 | 31 | 145 | 1 | 435 | 3 | 2 | 20 | 0.82 |
| 1 | 25 | 34 | 101 | 0.7 | 303 | 2.1 | 2 | 20 | 1 |
| 1 1/4 | 32 | 43 | 101 | 0.7 | 303 | 2.1 | 4 | 20 | 1.3 |
| 1 1/2 | 38 | 50 | 101 | 0.7 | 303 | 2.1 | 4 | 20 | 1.5 |
| 1 3/4 | 45 | 57 | 101 | 0.7 | 303 | 2.1 | 4 | 20 | 1.8 |
| 2 | 51 | 63 | 72.5 | 0.5 | 218 | 1.5 | 4 | 20 | 2.4 |
| 2 1/2 | 64 | 77 | 72.5 | 0.5 | 218 | 1.5 | 4 | 20 | 2.8 |
| 3 | 76 | 90 | 72.5 | 0.5 | 218 | 1.5 | 4 | 20 | 3.1 |
| 3 1/2 | 89 | 103 | 72.5 | 0.5 | 218 | 1.5 | 4 | 20 | 3.4 |
| 4 | 102 | 116 | 43.5 | 0.3 | 131 | 0.9 | 4 | 20 | 3.9 |
| 5 | 127 | 144 | 43.5 | 0.3 | 131 | 0.9 | 6 | 10 | 4.5 |
| 6 | 152 | 169 | 43.5 | 0.3 | 131 | 0.9 | 6 | 10 | 6 |
Application:
Acid or Alkali rubber hose is applied for conveying sulphuric acid with a concentration below 40% and other inorganic acids(except nitric acids) as well as dilute alkali at no more than 45°C.
Construction:
Tube: Black, smooth, EPR rubber compound.
Cover: Black, smooth(wrapped finish), EPR rubber compound.
Reinforcement: High strength synthetic cord plus helix wire.
Temperature: -40 °C to +120°C (-40 ℉ to +248 ℉)
