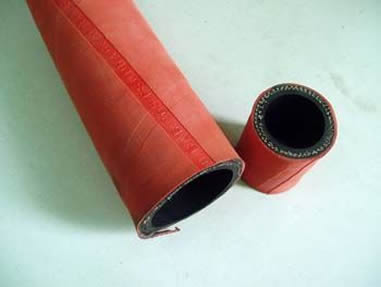

Steam Hose
Construction: steam hose is made from excellent heat-resistant rubber. And the reinforcement is braided with copper facing wire.
Applications: For conveying saturated steam and superheated water continually at a temperature below 150 ℃ or intermittently at a temperature below 160 ℃.
| W/B | Hose I.D | Hose O.D. | Working Pressure | Burst Pressure | Minimum Bend Radius | Length | |||
| DN | inch | mm | MPa | Psi | MPa | Psi | mm | metres | |
| 1W | 10 | 3/8 | 21.5 | 1.0 | 150 | 4.0 | 570 | 130 | 20/ 50 |
| 13 | 1/2 | 24.5 | 1.0 | 150 | 4.0 | 570 | 180 | 20/ 50 | |
| 16 | 5/8 | 27.5 | 1.0 | 150 | 4.0 | 570 | 205 | 20/ 50 | |
| 19 | 3/4 | 30.5 | 1.0 | 150 | 4.0 | 570 | 240 | 20/ 50 | |
| 22 | 7/8 | 33.5 | 1.0 | 150 | 4.0 | 570 | 280 | 20/ 50 | |
| 25 | 1 | 37.0 | 1.0 | 150 | 4.0 | 570 | 300 | 20/ 50 | |
| 32 | 1-1/4 | 44.0 | 1.0 | 150 | 4.0 | 570 | 420 | 20/ 40 | |
| 38 | 1-1/2 | 50.5 | 1.0 | 150 | 4.0 | 570 | 500 | 20/ 40 | |
| 45 | 1-3/4 | 57.5 | 1.0 | 150 | 4.0 | 570 | 500 | 20/ 40 | |
| 51 | 2 | 63.5 | 1.0 | 150 | 4.0 | 570 | 630 | 20/ 40 | |
| 64 | 2-1/2 | 77.5 | 1.0 | 150 | 4.0 | 570 | 700 | 20/ 40 | |
| 2W | 10 | 3/8 | 23.0 | 2.0 | 300 | 6.0 | 860 | 130 | 20/ 50 |
| 13 | 1/2 | 26.0 | 2.0 | 300 | 6.0 | 860 | 180 | 20/ 50 | |
| 16 | 5/8 | 29.0 | 2.0 | 300 | 6.0 | 860 | 205 | 20/ 50 | |
| 19 | 3/4 | 32.0 | 2.0 | 300 | 6.0 | 860 | 240 | 20/ 50 | |
| 22 | 7/8 | 35.0 | 2.0 | 300 | 6.0 | 860 | 280 | 20/ 50 | |
| 25 | 1 | 38.5 | 2.0 | 300 | 6.0 | 860 | 300 | 20/ 50 | |
| 32 | 1-1/4 | 45.5 | 2.0 | 300 | 6.0 | 860 | 420 | 20/ 40 | |
| 38 | 1-1/2 | 52.0 | 2.0 | 300 | 6.0 | 860 | 500 | 20/ 40 | |
| 45 | 1-3/4 | 59.0 | 2.0 | 300 | 6.0 | 860 | 500 | 20/ 40 | |
| 51 | 2 | 65.0 | 2.0 | 300 | 6.0 | 860 | 630 | 20/ 40 | |
| 64 | 2-1/2 | 79.0 | 2.0 | 300 | 6.0 | 860 | 700 | 20/ 40 | |
