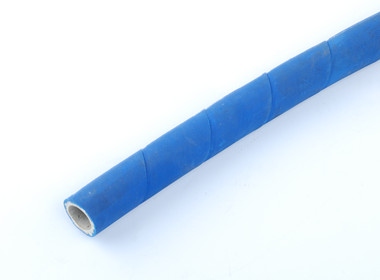

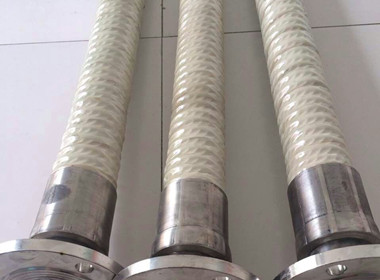

Food Hose
Application:
Manufactured with hygienic grade nontoxic rubber compound designed for multiple use in breweries for conveying wine, alcoholic liquors etc and also dairy plants for carrying milk and other dairy products as also edible oils or any other food stuff from one point to another.
Construction:
Tube: Abrasion, ozone and weather resistant synthetic rubber.
Cover: white or blue CR/BR.
Reinforcement: High tensile cord and high tensile steel wire helix.
Temperature: -20 °C to +80°C (-4℉ to +176 ℉)
| Food Piping hose Technical Specification | ||||||||
| ID | OD | Max W.P | Min B.P | Layer | Weight | |||
| inch | mm | mm | psi | Mpa | psi | Mpa | inch | kg/m |
| 3/4 | 19 | 32 | 217 | 1.5 | 651 | 4.5 | 2 | 0.60 |
| 1 | 25 | 39 | 217 | 1.5 | 651 | 4.5 | 2 | 0.74 |
| 1 1/2 | 32 | 52 | 217 | 1.5 | 651 | 4.5 | 2 | 1.06 |
| 2 | 51 | 65 | 217 | 1.5 | 651 | 4.5 | 2 | 1.41 |
| 3 | 76 | 95 | 217 | 1.5 | 651 | 4.5 | 2 | 2.25 |
| 4 | 102 | 120 | 217 | 1.5 | 651 | 4.5 | 2 | 2.95 |
